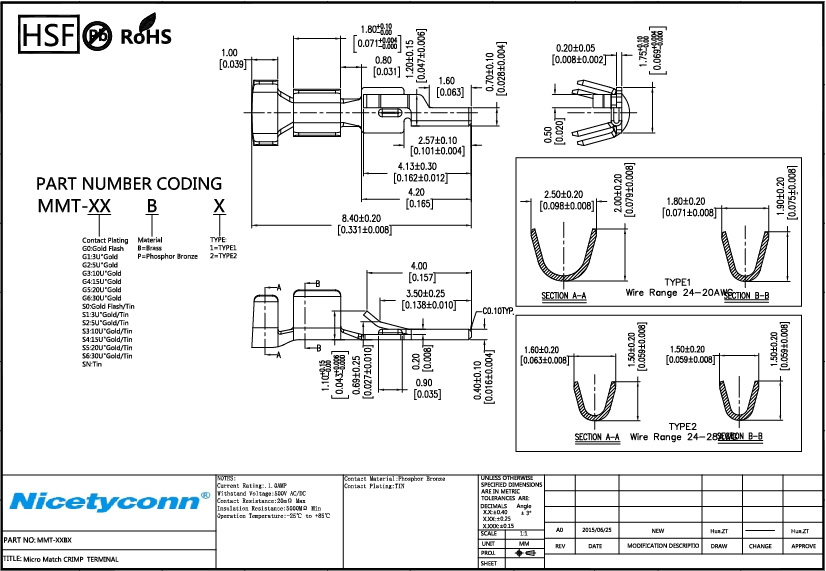

Micro Match Crimp Terminal |
Specification: |
Current Rating:1.0AMP |
Withstand Voltage:500V AC/DC |
Contact Resistance:20mΩ Max |
Insulation Resistance:5000MΩ Min |
Operation Temperature:-25oC to +85oC |
Contact Material: Phosphor Bronze |
Insulator Material: TI |
