  1. 2.54 mm Pitch Double Socket IDC Socket Connector
    1. Packing:Tray
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

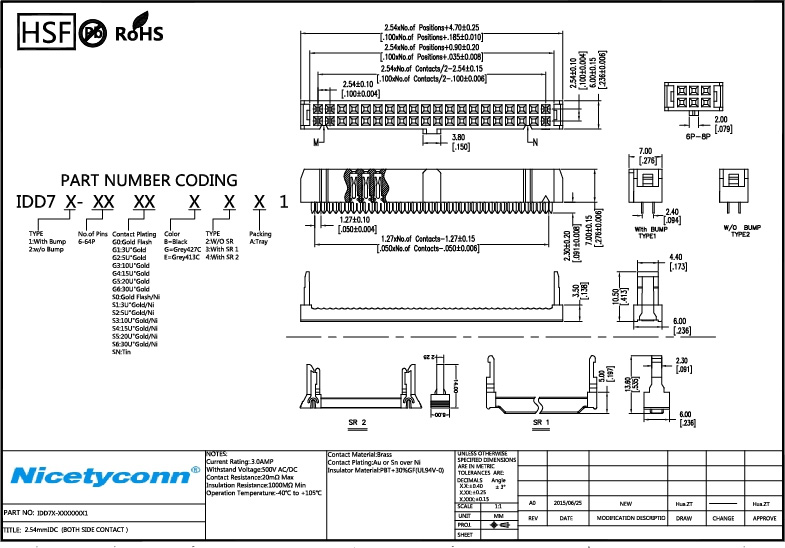

  1. 2D(PDF) Drawing
  2. Approval Specification

2.54 mm Pitch Double Socket IDC Socket Connector

Specification:

Current Rating: 3.0AMP

Withstanding voltage: 500V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000 mΩ Min

Operation Temperature: -40oC to +105oC

Contact Material: Brass

Contact Plating:Au or Sn over Ni

Insulator Material:PBT+30%G.F(UL94V-0)
