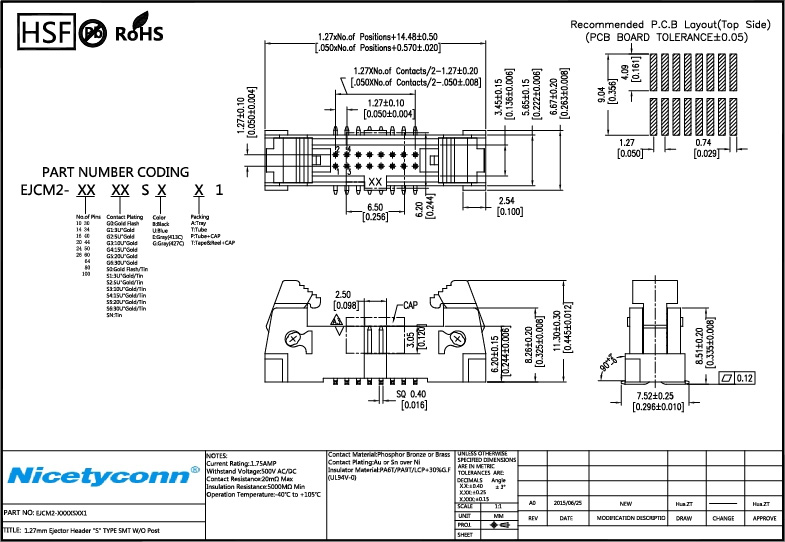

1.27 Pitch S Type SMT Without Post Ejector Header |
Specification: |
Current Rating: 1.75AMP |
Withstanding voltage: 500V AC/DC |
Contact Resistance: 20mΩ Max |
Insulation Resistance: 5000 mΩ Min |
Operation Temperature: -40oC to +105oC |
Contact Material: Phosphor Bronze or Brass |
Contact Plating: Au or Sn over Ni |
Insulator Material: PA6T/PA9T/LCP+30%G.F (UL94V-0) |
