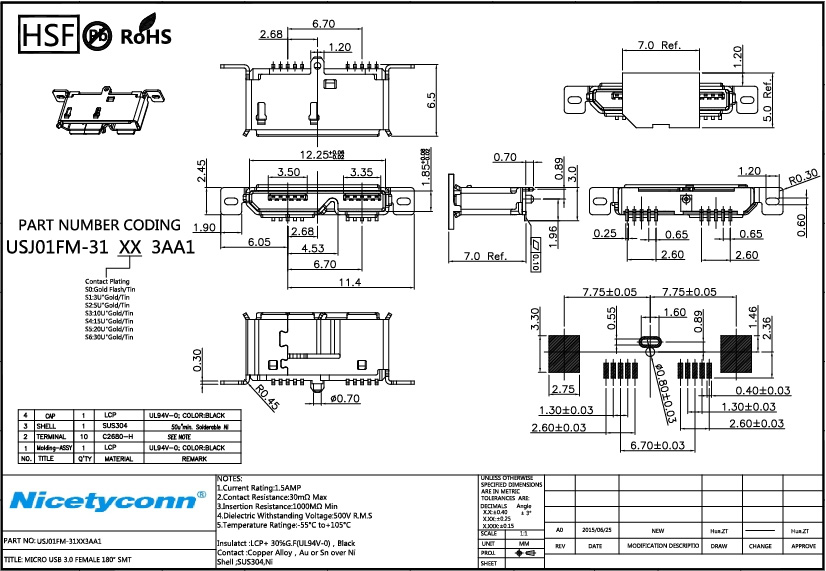

3.0 mm 180 Degree Female Micro USB Plug |
Specification: |
Current Rating: 1.5AMP |
Contact Resistance: 30mΩ Max |
Insertion Resistance: 1000MΩ Min |
Dielectric withstanding voltage: 500V R.M.S |
Temperature Range: -55oC to +105oC |
Insulator: PBT+30% GF(UL94V-0), Black |
Contact: Copper Alloy, Au or Sn over Ni |
Shell; SUS304.Ni |
