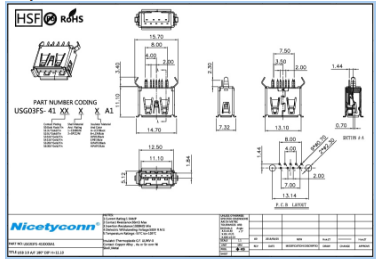

3.0 A/F 180 Degree DIP Type H=11.10 USB Connector |
Specification: |
Current Rating: 1.5AMP |
Contact Resistance: 30mΩ Max |
Insertion Resistance: 1000MΩ Min |
Dielectric withstanding voltage: 500V R.M.S |
Temperature Range: -55oC to +105oC |
Insulator: Thermoplastic GF,UL94V-0 |
Contact: Copper Alloy, Au or Sn over Ni |
Shell; Metal |
