  1. 3.0 A/F 180 Degree DIP Type USB Connector
    1. Packing:Tray, Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

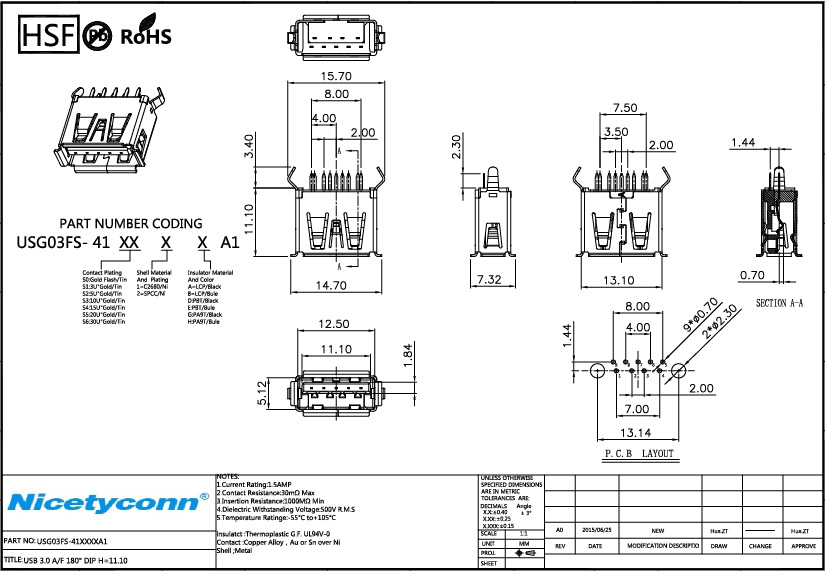

  1. 2D(PDF) Drawing
  2. Approval Specification

3.0 A/F 180 Degree DIP Type USB Connector

Specification:

Current Rating: 1.5AMP

Contact Resistance: 30mΩ Max

Insertion Resistance: 1000MΩ Min

Dielectric withstanding voltage: 500V R.M.S

Temperature Range: -55oC to +105oC

Insulator: Thermoplastic GF,UL94V-0

Contact: Copper Alloy, Au or Sn over Ni

Shell; Metal
