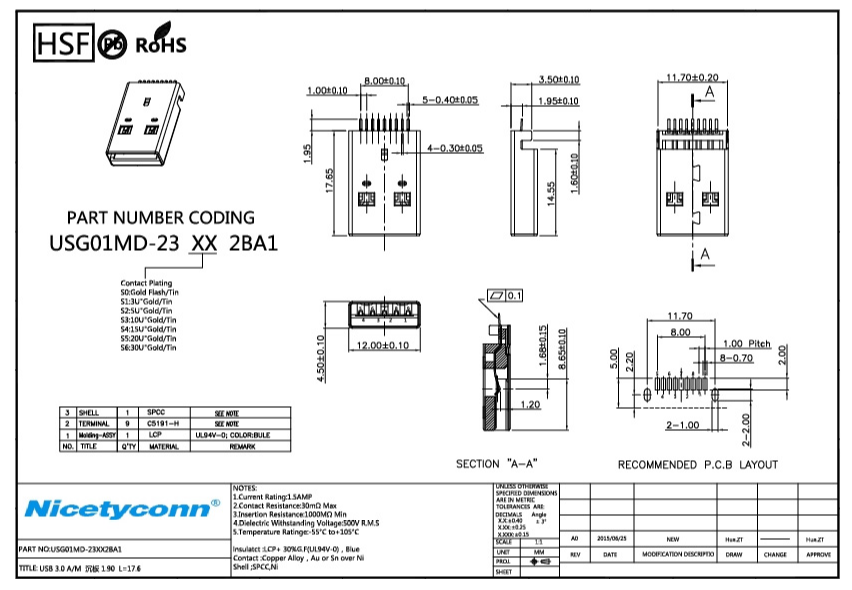

3.0 A/M Solder Type 1.90 L=18.7 USB Plug |
Specification: |
Current Rating: 1.5AMP |
Contact Resistance: 30mΩ Max |
Insertion Resistance: 1000MΩ Min |
Dielectric withstanding voltage: 500V R.M.S |
Temperature Range: -55oC to +105oC |
Insulator: LCP+30% GF,UL94V-0, blue |
Contact: Copper Alloy, Au or Sn over Ni |
Shell; SPCC.Ni |
