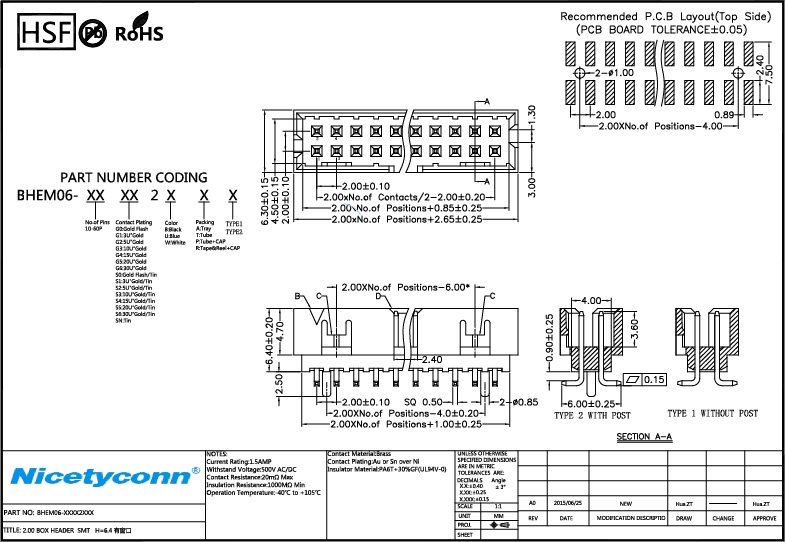

2.0 mm Pitch SMT Box Header Plug with Window |
Specification: |
Current Rating: 1.5AMP |
Withstand Voltage: 500V AC/DC |
Contact Resistance: 20mΩ Max |
Insulation Resistance: 1000MΩ Min |
Operation Temperature: -40oC to +105oC |
Insulation Material: PA6T30%GF(UL94V-0) |
Contact Material: brass |
Contact Plating: Au or Sn over Ni |
