home
>
Products
>
Wafer Series

  • 1
  1. 2.0 mm Pitch Straight Type Wafer Plug
    1. Packing:Tube, PE bag
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

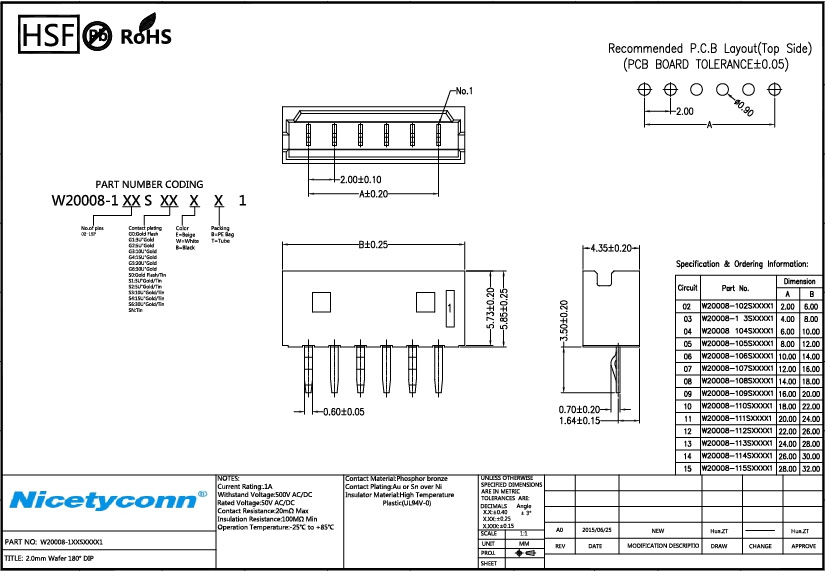

  1. 2D(PDF) Drawing
  2. Approval Specification

2.0 mm Pitch Straight Type Wafer Plug

Specification:

Current Rating: 1.0AMP

Withstand Voltage: 500V AC/DC

Rated Voltage: 50V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 100MΩ Min

Operation Temperature: -25oC to +85oC

Insulation Material: High temperature plastic (UL94V-0)

Contact Material: Phosphor bronze

Contact Plating: Au or Sn over Ni
