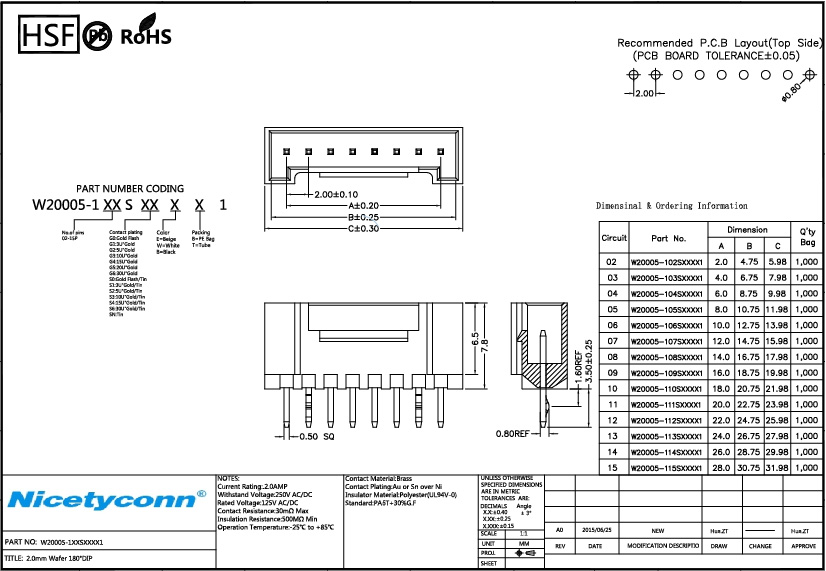

2.0 Pitch Straight Type Wafer plug |
|
Specification: |
|
Current Rating: 2.0AMP |
|
Withstand Voltage: 250V AC/DC |
|
Rated Voltage: 125V AC/DC |
|
Contact Resistance: 30MΩ Max |
|
Insulation Resistance: 50MΩ Min |
|
Operation Temperature: -25oC to +85oC |
|
Insulation Material: Polyester(UL94V-0) |
|
Contact Material:Brass |
|
Contact Plating: Au or Sn over Ni |
