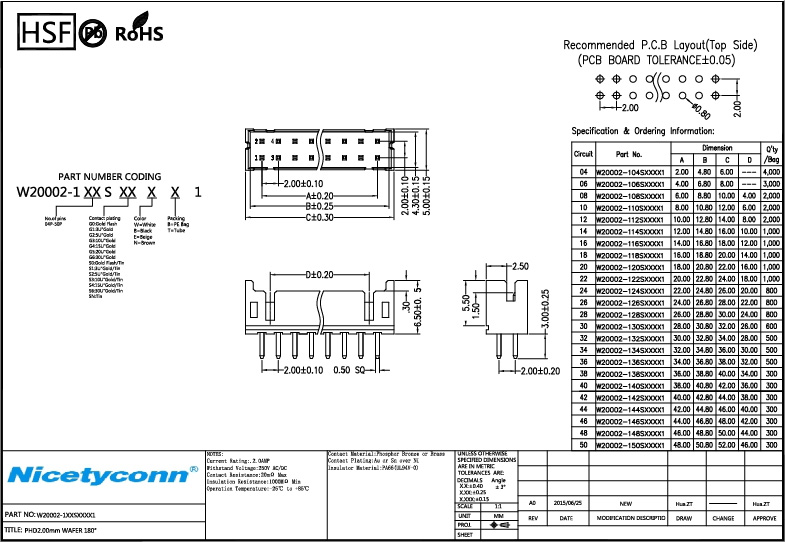

2.0 Pitch Straight Type Wafer Plug |
Specification: |
Current Rating: 2.0AMP |
Withstand Voltage: 250V AC/DC |
Contact Resistance: 20MΩ Max |
Insulation Resistance: 100MΩ Min |
Operation Temperature: -25oC to +85oC |
Insulation Material: PA66(UL94V-0) |
Contact Material: phosphor bronze or brass |
Contact Plating: Au or Sn over Ni |
