Products
>
Wafer Series

  • 1
  1. 2.5 mm 90 Degree Plug Wafer Plug
    1. Packing:Tube, PE bag
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

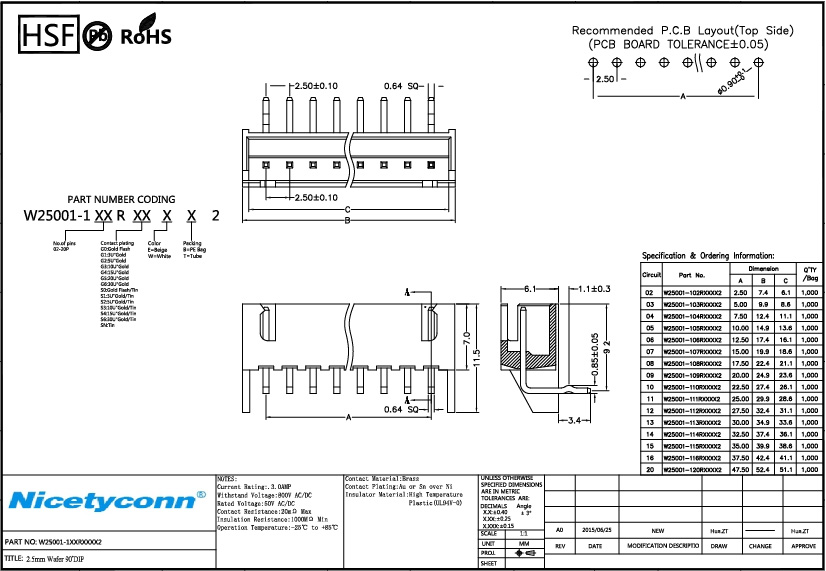

  1. 2D(PDF) Drawing
  2. Approval Specification

PH 2.5 mm 90 Degree Plug Wafer Plug

Specification:

Current Rating: 3.0AMP

Withstand Voltage: 800V AC/DC

Rated Voltage: 250V/AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Operation Temperature: -25oC to +85oC

Insulation Material: high-temperature plastic(UL94V-0)

Contact Material: brass

Contact Plating: Au or Sn over Ni
