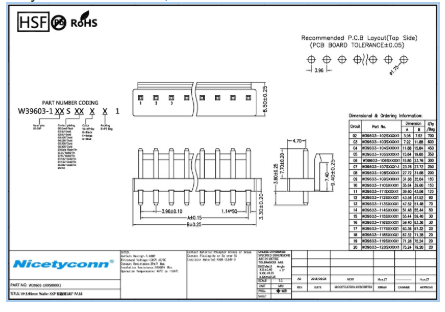

3.96 mm Pitch 180 Degree Straight Type Through Hole Wafer |
Specification: |
Current Rating: 5.0AMP |
Withstand Voltage: 1000V AC/DC |
Contact Resistance: 20mΩ Max |
Insulation Resistance: 1000MΩ Min |
Operation Temperature: -25oC to +85oC |
Insulation Material: PA66(UL94V-0) |
Contact Material: Phosphor bronze or brass |
Contact Plating: Au or Sn over Ni |
