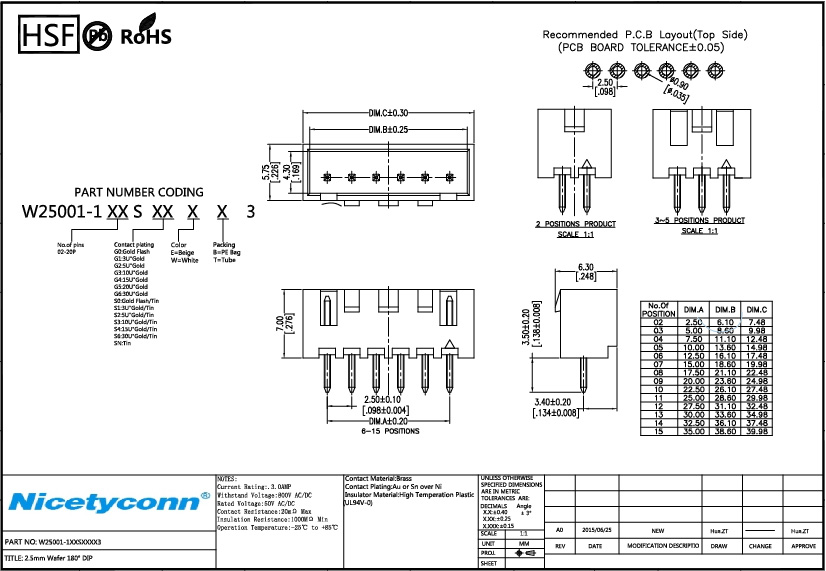

2.5 mm Pitch 180 Degree Straight Type Wafer with White Colour |
Specification: |
Current Rating: 3.0AMP |
Withstand Voltage: 800V AC/DC |
Rated Voltage: 50V/AC/DC |
Contact Resistance: 20mΩ Max |
Insulation Resistance: 1000MΩ Min |
Operation Temperature: -25oC to +85oC |
Insulation Material: high-temperature plastic(UL94V-0) |
Contact Material: brass |
Contact Plating: Au or Sn over Ni |
